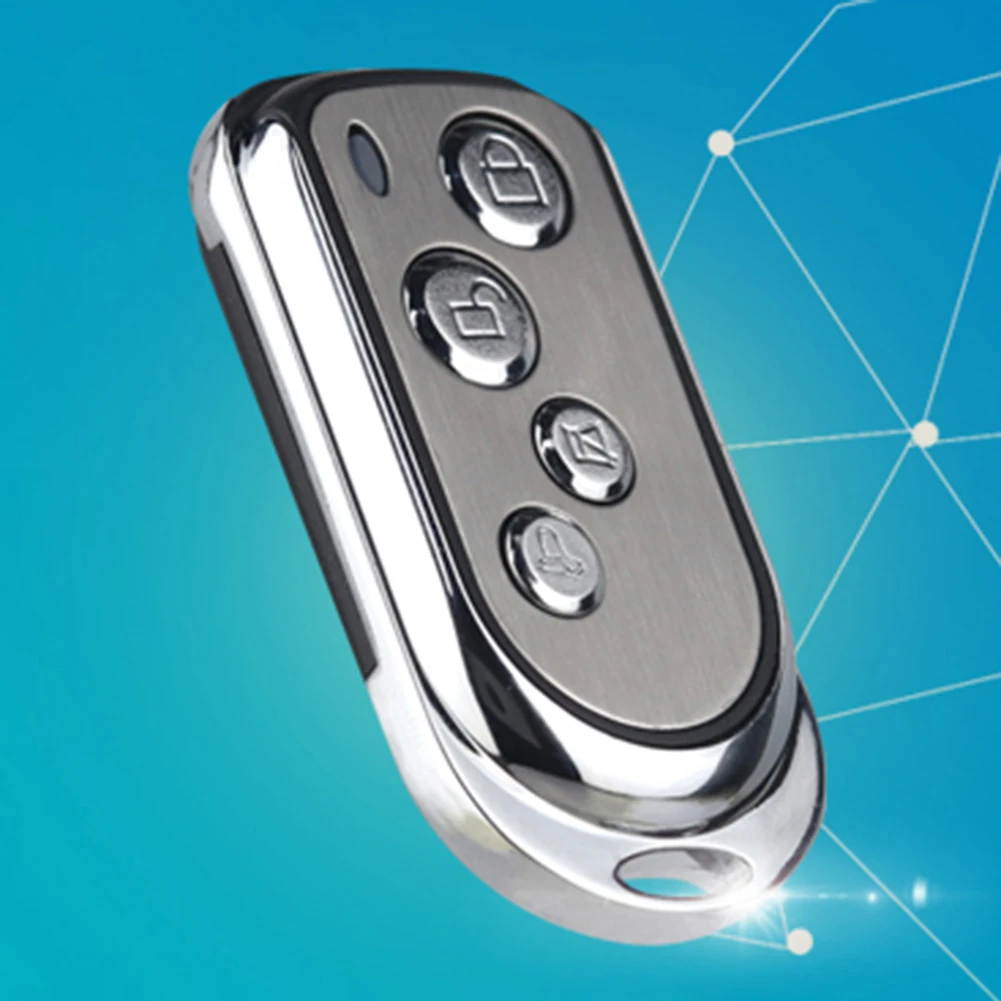

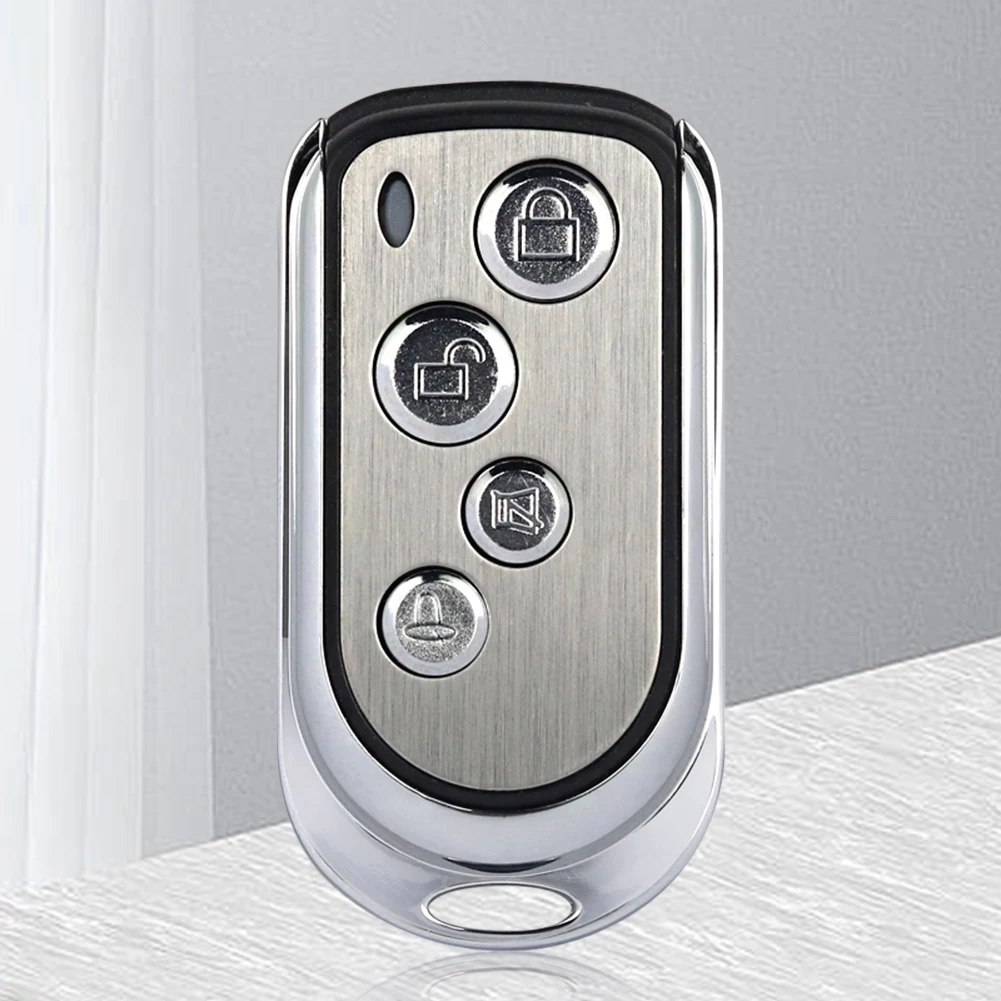

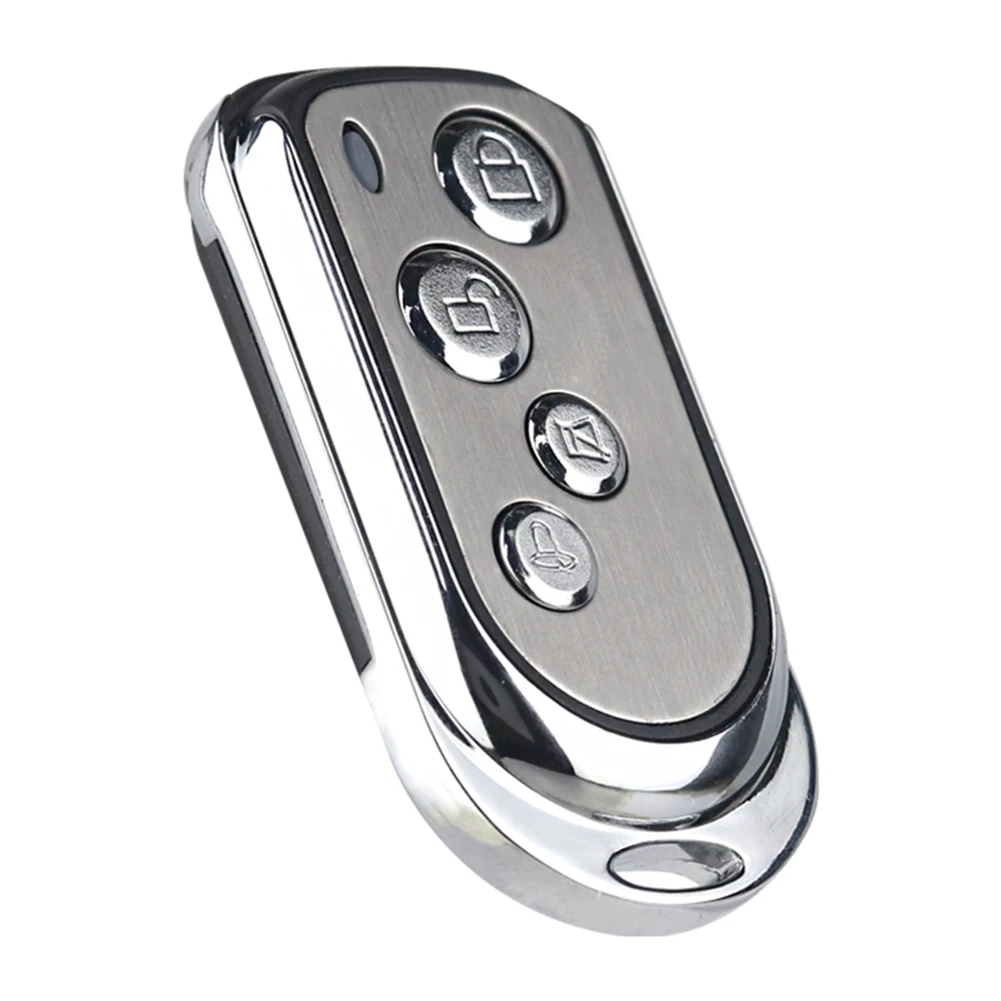

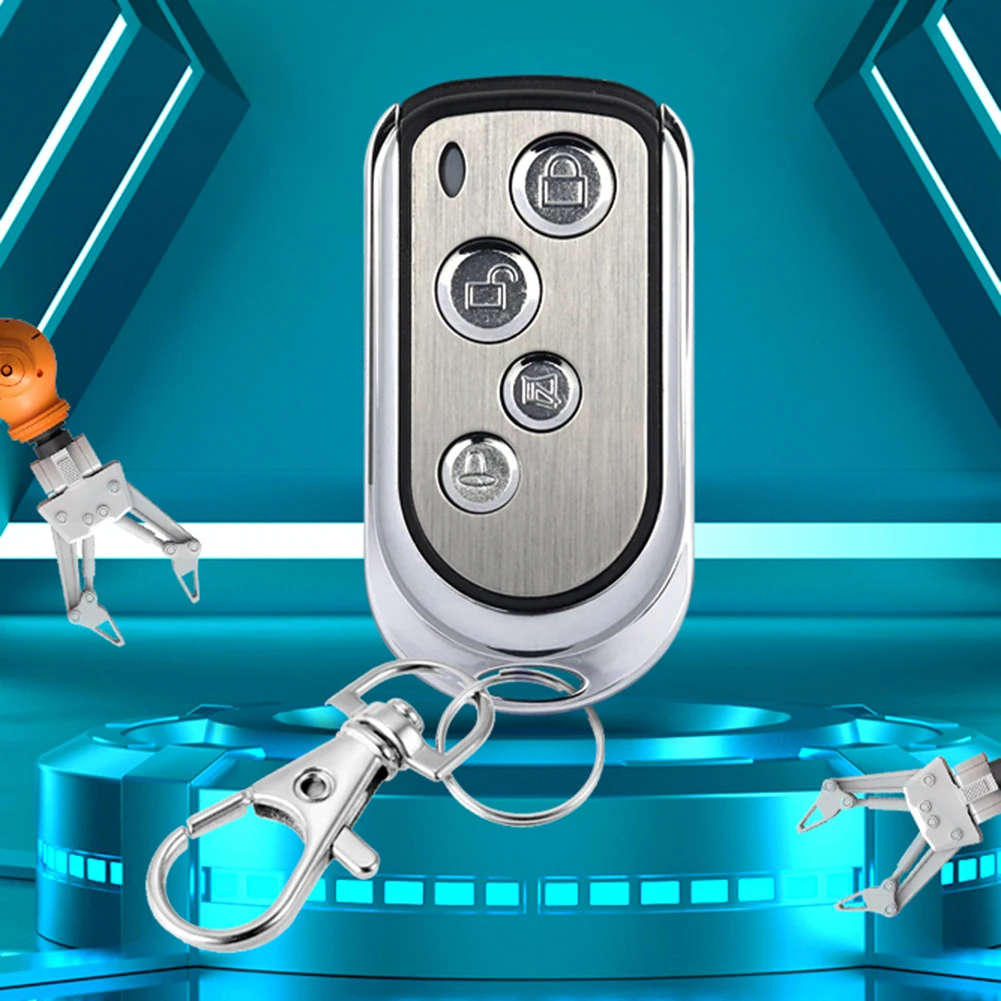

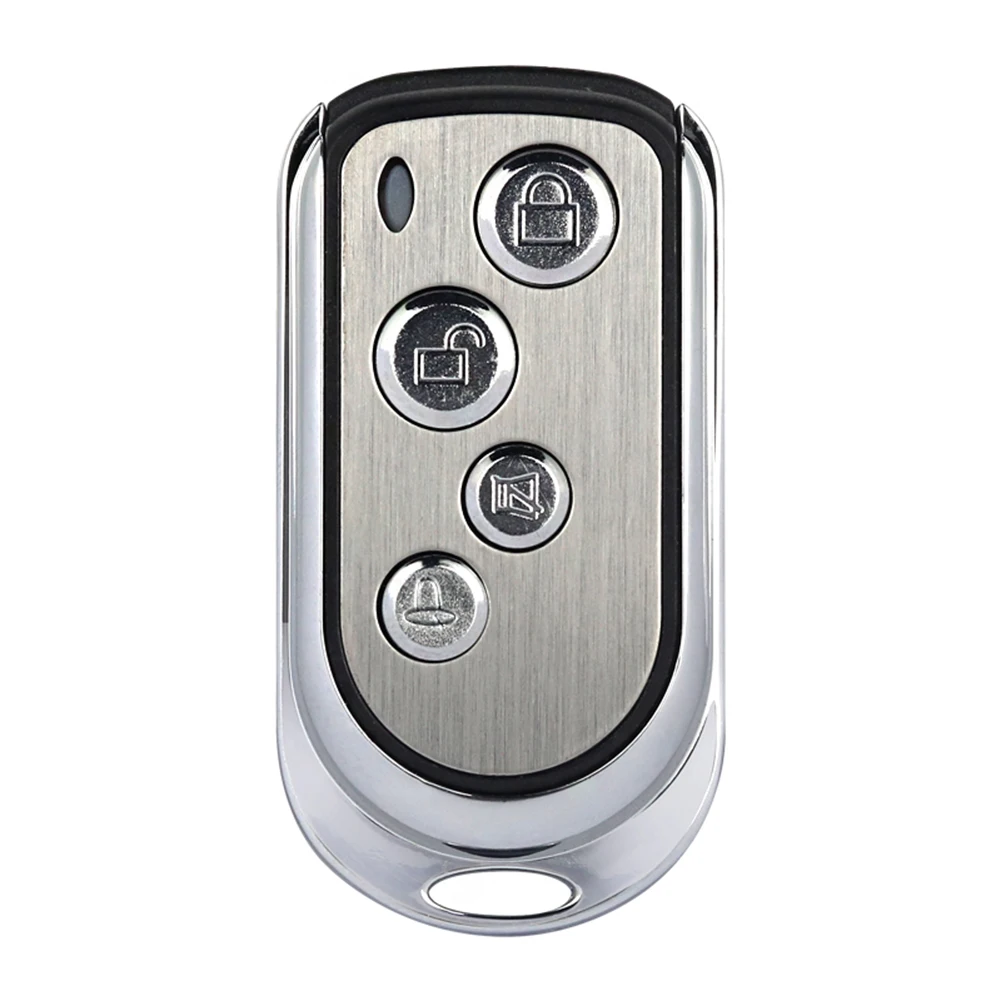

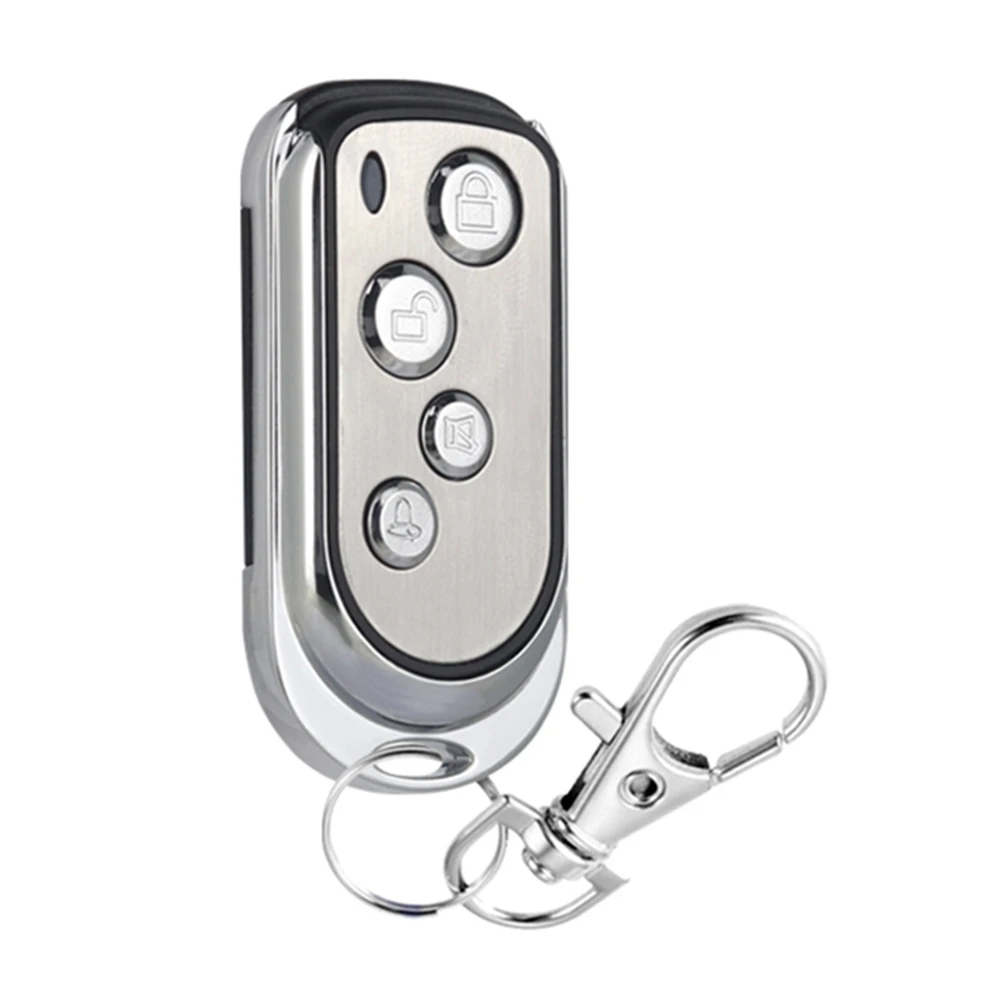

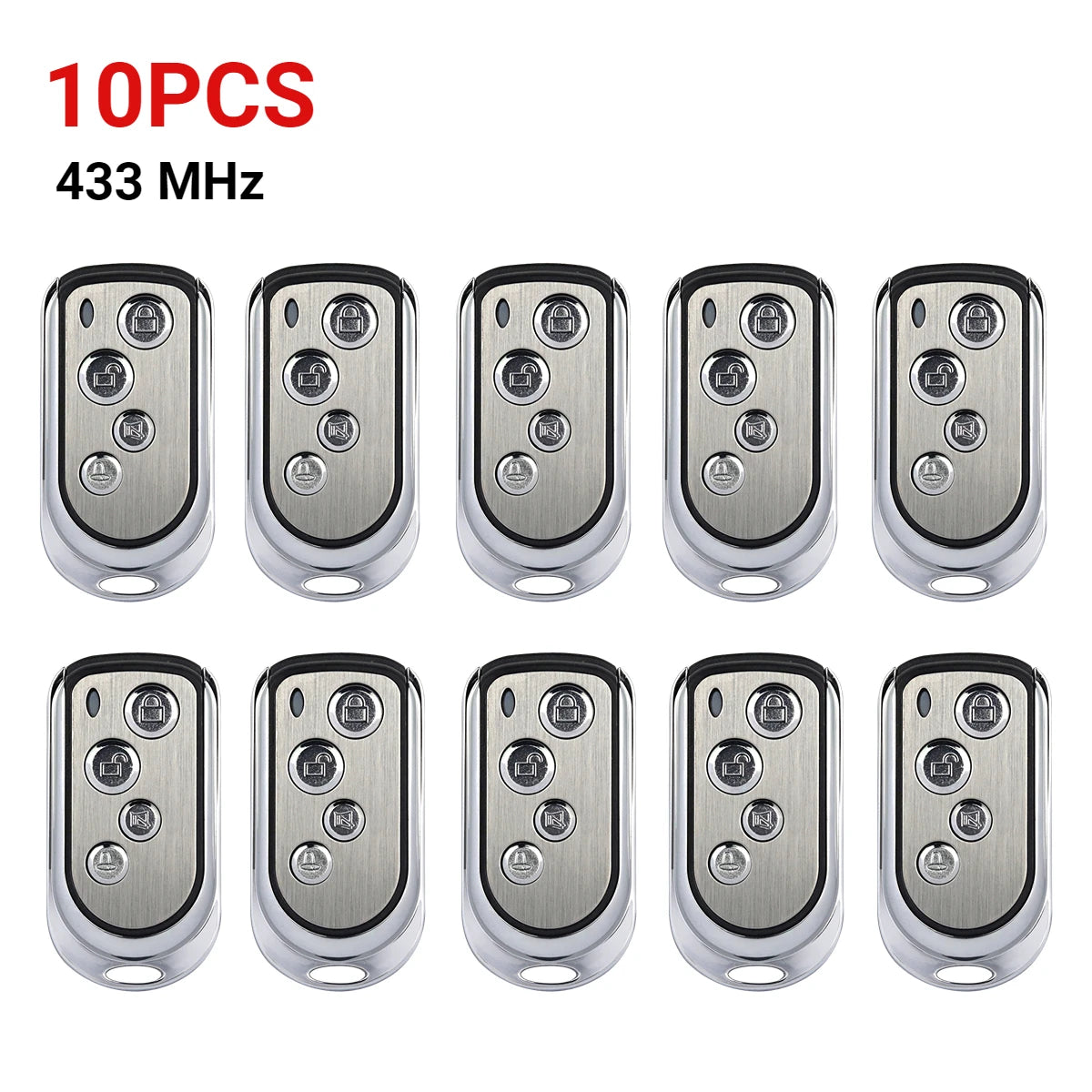

1-10PCS 433MHz Smart Copy Duplicator Remote Control 4 Button Electric Garage Door Gate Remote Cloning 315MHz Transmitter

315 MHz/433MHz Remote Control Duplicator 4 Buttons Electronic Gate Control Duplicator Universal Copy Fixed Learning Code for Garage Door/Lamp/Car
Feature:
1. Versatile and Personalized Design: This remote control duplicator offers a multifunctional, customizable, and user-friendly design. It can be quickly mastered and used for various applications such as battery cars, electric doors, electric barriers, electric garages, security monitoring, lighting remote control, etc.
2. High-Performance RF Chip: Equipped with a high-performance RF chip, this copy remote controller  ensures stable frequency oscillation, accurate transmission distances, non-directional functionality, and high transmission sensitivity. It can copy most fixed-code and learning-code wireless controllers efficiently.
3. Fast and Easy Copying: The copying process is quick and straightforward. After copying, it does not affect the functionality of the original remote control. Simply copy the codes and start using the cloned remote control without the need for additional programming or coding.
4. Wide Range of Applications: This  key duplicator is compatible with a wide range of devices, including home and commercial security alarm systems, electric vehicles, cars, motorcycles, various door control systems, and other intelligent control devices.
5. Convenient and Reliable Usage: With its user-friendly design and reliable performance, this electronic gate control duplicatorprovides convenience and peace of mind. Use it effortlessly in a variety of scenarios, knowing that you have a versatile and dependable control solution at your fingertips.



Specification:
Certification: NONE
Origin: Mainland China
Use: Lighting,Electric Door
Wireless Communication: RF
Model Number: Remote Control Duplicator
Package: Yes
Operating frequency: 315 MHz / 433.92 MHz; (optional)
Battery type: 12V, 23A alkaline battery;
Working method: copy;

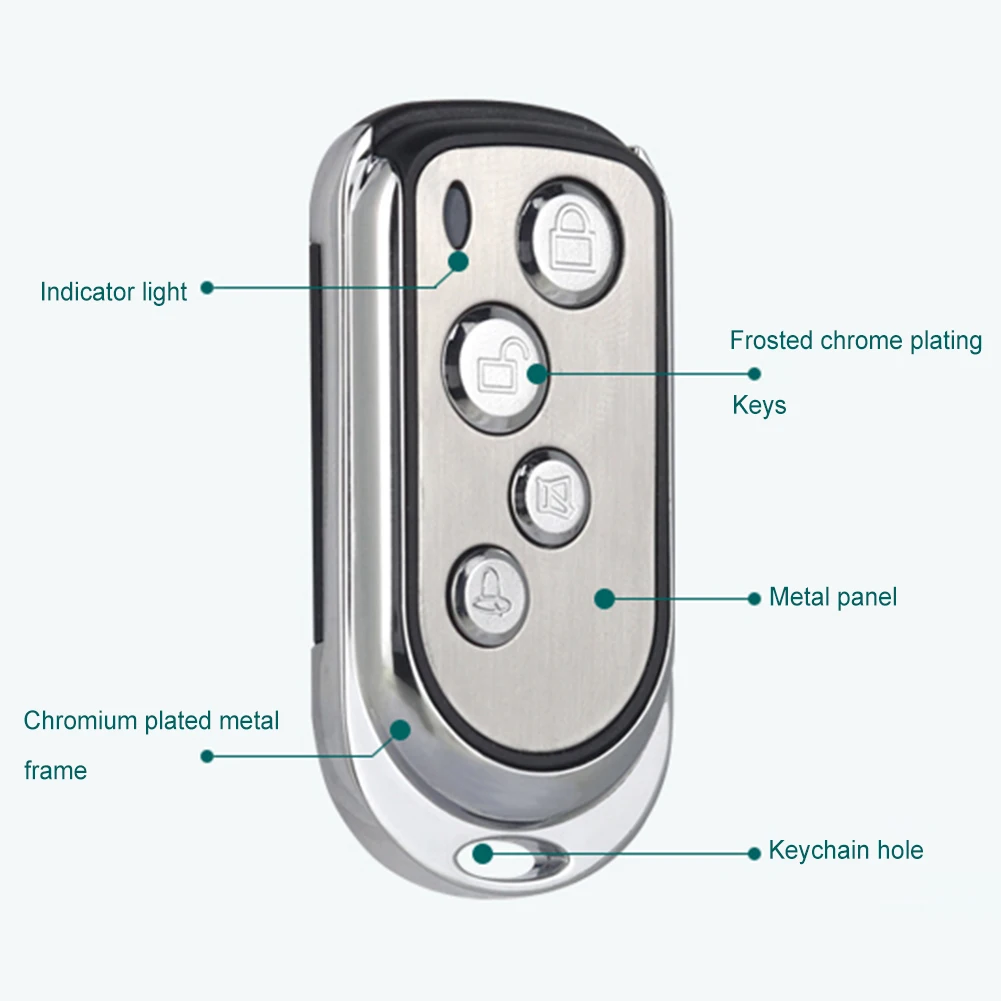

Shell material: ABS;

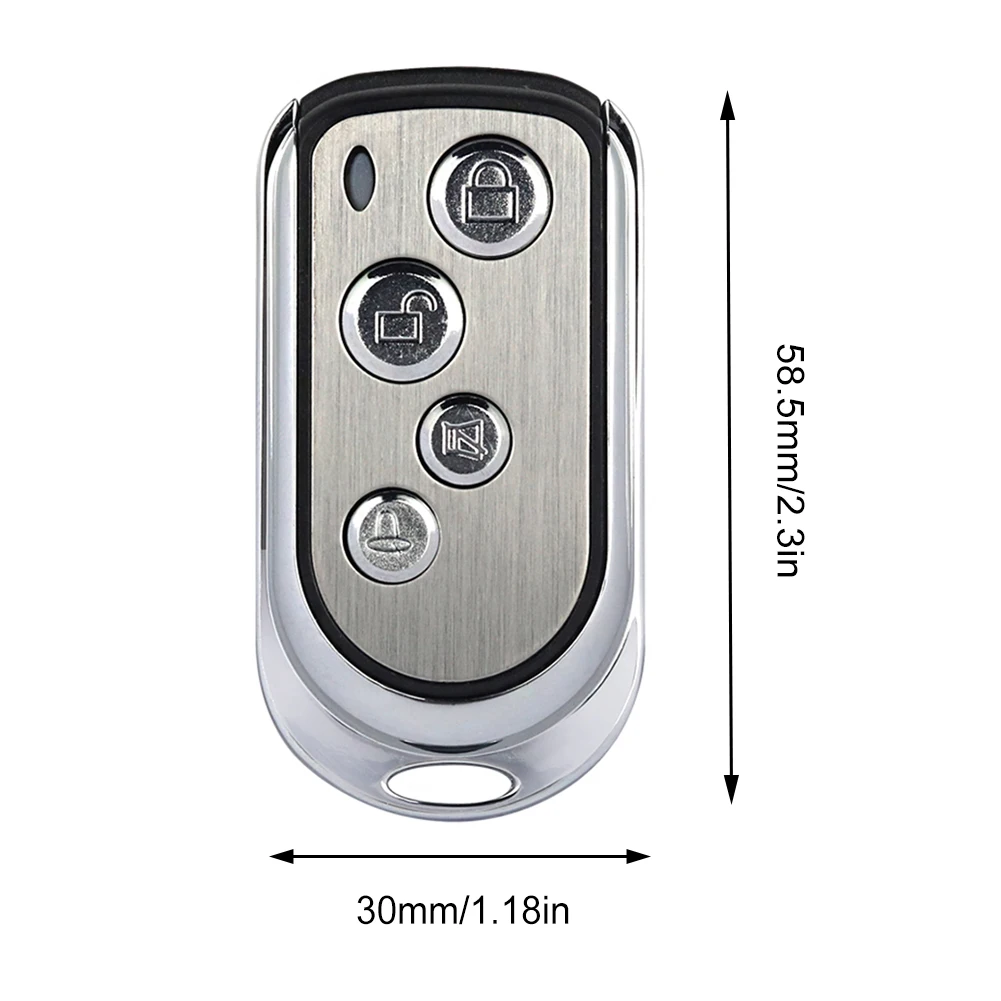

Product size: 58.5x30x12.5mm (including shell) 2.3x1.18x0.49in
Working voltage: DC9-12V
Emission current: <11mA
Quiescent current: <0.1uA
Transmission power: +3-6dBm
Working temperature: -20-70℃
product description:

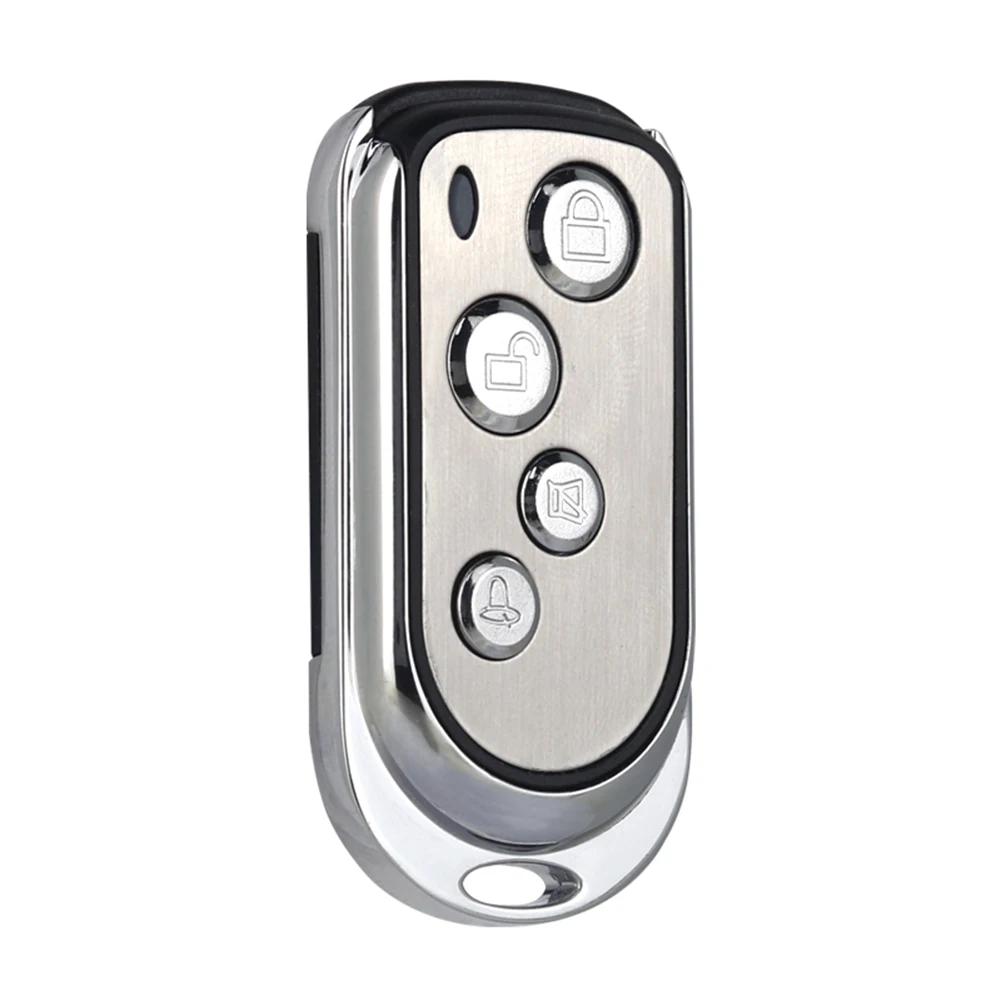

AK-1807 metal copy four-button remote control adopts 12F683 main control chip, supports online programming, can be repeatedly programmed, built-in EEPROM, can copy other ordinary remote controls with the same frequency, can clear codes and learn codes at any time, easy to use, fast, and can be used In car remote control, lighting control, smart home remote control and other fields.
Function Description:
(1) Copy code operation
If the remote control has paired the code, it needs to be cleared before the code can be paired. Code pairing operation: Press and hold the copied remote control and the single button of the copy remote control at the same time until the indicator light of the copy remote control changes from flashing to constant light, then release the two remote control buttons, and the code pairing is successful. Other buttons are also operated in this way in turn until all buttons are copied.
(2) Code clearing operation
Simultaneously press and hold the two buttons of the copy remote control, lock and unlock, until the indicator light flashes quickly, and then short press the unlock button three times to clear the code (press and hold the lock button during the process).
(3) Recovery code operation
Press and hold the mute and ring buttons of the copy remote control at the same time until the indicator light flashes quickly, then the remote control code that was cleared before can be restored.
Precautions:
(1) The battery voltage cannot exceed the working voltage range.
(2) When copying the remote control, try to keep the two remote controls close to each other, otherwise copying abnormalities will occur.
(3) In an environment with relatively large wireless interference, the remote control distance may be reduced.
(4) The remote control is suitable for use within a range of 30-50 meters, please do not use it for long-distance remote control.
(5) It is forbidden to use it in a humid environment, otherwise it may cause damage to the remote control.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Remote Control Duplicator
