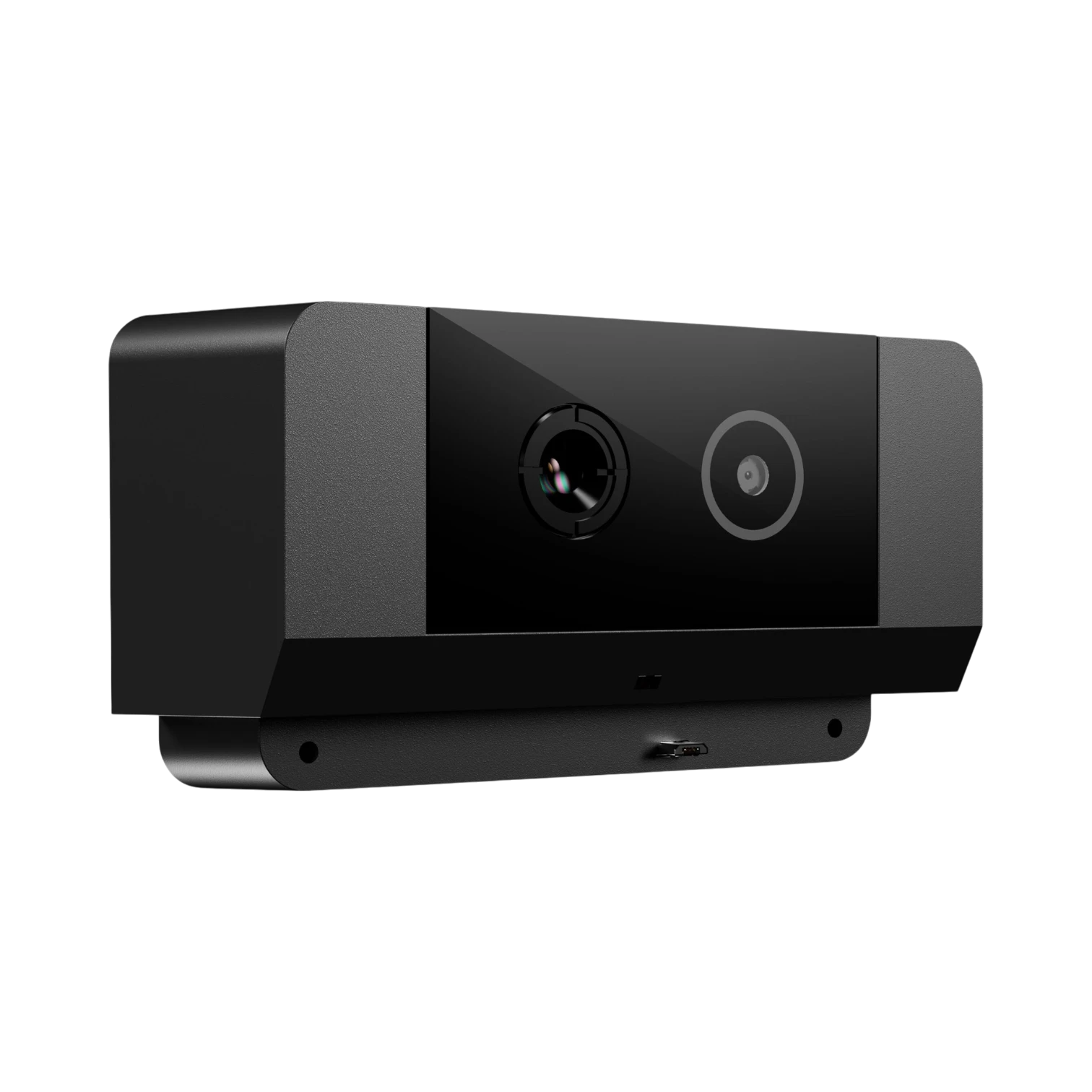

Elo Pro Modular Contactless Solution Temperature Sensor

The Elo E534879 is a temperature sensor that works without physical contact and installs in a modular way. It brings reliable health screening to reception areas, self-service kiosks, and access control points by measuring a person’s temperature in seconds.

Designed to pair directly with Elo I-Series all-in-one touchscreens and monitors, the sensor relies on infrared and RGB cameras to locate a face, compensate for height, and deliver a reading within plus or minus 0.5 degrees Celsius when the user stands about 24 inches away. The process is fully automatic, so visitors can complete check-in without help from staff.

Setup is straightforward. A single USB 2.0 connection provides both power and data, and the sensor communicates with Android, Windows, and Linux systems. It recognises the 10-, 15-, and 22-inch Elo I-Series models already in the field, allowing businesses to add temperature screening to existing kiosks and service stations with minimal disruption.

The enclosure comes in a black finish that is built for durability, yet the unit weighs just 0.7 lbs, so it integrates easily into tight spaces. With a measurement range from 30 to 42 degrees Celsius, the sensor suits offices, retail stores, schools, event venues, and healthcare facilities that want an extra layer of safety. Elo backs the product with a two-year warranty and offers extended service plans for organisations that need longer coverage.

Highlights:

• Reads body temperature within ±0.5°C
• Works best at a distance of 24 inches
• Infrared and RGB cameras perform automatic face detection with height adjustment
• Integrates with Elo I-Series touchscreens in 10-, 15-, and 22-inch sizes
• Supports Android, Windows, and Linux operating systems
• Measurement range from 30 °C to 42 °C (86 °F to 108 °F)
• Single USB 2.0 cable handles power and data
• Black enclosure built for durability and weighs only 0.7 lbs
• Backed by a two-year warranty with optional extended service plans
